Suzuki 9.9 HP DF9.9BTHS Outboard Motor

Suzuki 9.9 HP DF9.9BTHS Outboard Motor

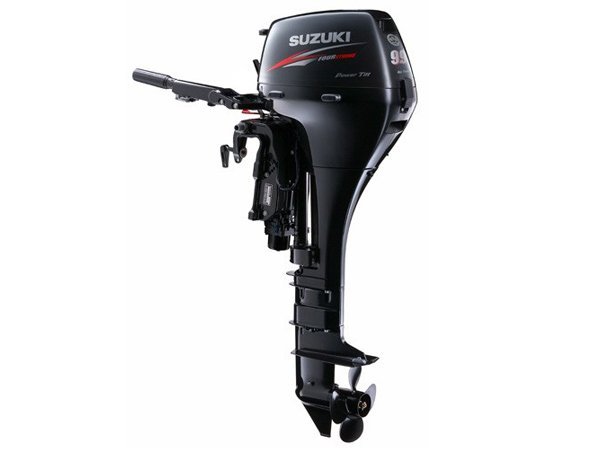

The new Suzuki 9.9 HP EFI outboard motor model DF9.9BTHS is a 15 inch short shaft, electric start, power tilt and electronic fuel injection. The Suzuki 9.9 HP outboard engine is lightweight, compact and fuel efficient. This 2-cylinder 4-stroke is remarkably smooth and quiet. The Suzuki 9.9hp outboard is an excellent choice for short shaft jon boats and skiffs, as well auxiliary power for sailboats and “kickers” for larger fishing boats. Suzuki designed the 9.9hp with user-friendly features such as the multi-function tiller handle which controls steering, throttle, throttle tension, and power tilt. Additionally, a one-touch steering tension control lever located on the front of the engine allows the user to quickly adjust steering friction.

Suzuki 9.9 HP DF9.9BTHS Outboard Motor
Electronic Fuel Injection (EFI)
Sleek, Compact, Lightweight Design
Lightest EFI Outboard in 9.9hp 4-stroke Class
Saltwater Rated
Fresh Water Flushing Port
Multi-Layer Corrosion Protection
Electric Start + 12V Alternator System
Thru-Cowling Manual Back-Up Starting
Forward-Mounted Gear Shift Lever
Twist-Grip Throttle with Tension Control
Quiet Through-the-Prop Exhaust
Start-in-Gear Lockout Protection
Proven Automotive Style Oil Pump
Power Tilt
5 Trim Positions w/Tilt Lock Pin
Low Oil Pressure Warning System
Over Heat Warning System
Over-Rev Limiter Protection
Steering Friction Tension Control
Integrated Carrying Handle
Emergency Lanyard Stop Switch
3.1 US Gallon Fuel Tank / Fuel Line
3-Blade Aluminum Propeller
3-Star Ultra-Low Emission Rating
Suzuki’s Lean Burn Control System
Up to 17% more fuel efficient over
some competitor’s 4-strokes
Suzuki 3-Year Warranty

Suzuki 9.9 HP DF9.9BTHS Outboard Motor
Model
DF9.9BTHS
Model Year
No
SKU
DF9.9BTHS-17
Weight
120.0000
Manufacturer
Suzuki
Country of Manufacture
Thailand
Horsepower
9.9hp
Shaft Length
15″ (Short)
Steering
Tiller
Starting
Electric
Trim & Tilt
Power Tilt
Fuel Delivery
EFI
Fuel Tank
External
Cylinder(s)
2
Displacement
327 cc (20.0 cubic inches)
Bore and Stroke
60.4 x 57 mm (2.38 x 2.24 inches)
Full Throttle RPM Range
5000-6000 RPM
Ignition System
Digital CDI
Induction Scavenging
SOHC
Valves per Cylinder
2
Fuel Type
Unleaded Gasoline (87 octane)
Fuel Tank / Fuel Line
INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line
Oil Type
SAE 10W-30 or SAE 10W-40
Oil Capacity
33.8 fl oz. (1000 mL)
Lubrication
Wet Sump; Trochoid Type Cam-Driven Oil Pump
Alternator
12V 145W 12A
Cooling System
Water-Cooled
Saltwater Rated
YES
Gear Ratio
2.08:1
Gear Shift
Forward-Neutral-Reverse (front-mounted lever)
Propeller
3-Blade Aluminum 9.25″ Dia x 10″ Pitch
Internal Battery
No

Suzuki 9.9 HP DF9.9BTHS Outboard Motor
What’s in the box?
3.1 gal. Fuel Tank
Fuel Line
Owner’s Manual
Aluminum Propeller
Tool Kit
Suzuki 3-Yr Warranty
