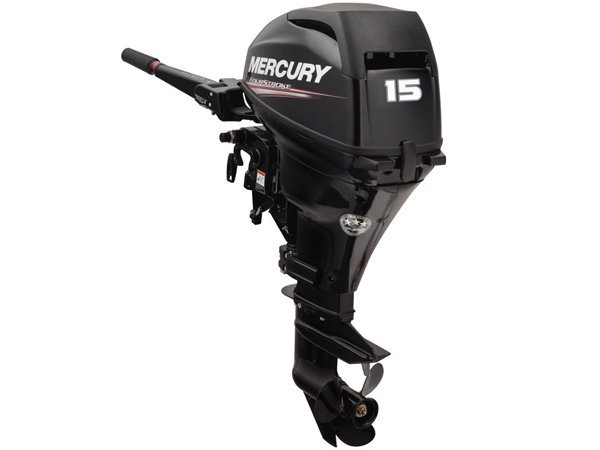

2018 Mercury 15 Hp 15MH Outboard Motor

2018 Mercury 15 Hp 15MH Outboard Motor
State of the art design of the 15 HP Mercury outboard motor powerhead creates the low-end torque needed for power and a fast plane making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatable boats. Mercury’s multi-function tiller handle is just one of the exclusive features found on Mercury 15hp outboard engines. Mercury Outboard Model: 15MH with its 3 year warranty is an affordable choice in the 15 HP class. This 115 lb. 15 HP outboard motor is equipped with manual start and the 15 inch short shaft. Mercury outboard engines that surpass industry standards and deliver power and fuel economy.
2018 Mercury 15 Hp 15MH Outboard Motor
Large Displacement Powerhead (351cc)
Decompression System for Easy Starting
Digital CD Ignition with Spark Advance
Tuned Intake for Quick Acceleration
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
“Wishbone” Mount for Reduced Vibration
6.6 Gallon Fuel Tank and Fuel Line
Easy Maintenance Canister Oil Filter
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty
2018 Mercury 15 Hp 15MH Outboard Motor
MODEL
15MH
MODEL YEAR
2018
SKU
15MH-18
WEIGHT
115.0000
MANUFACTURER
Mercury
COUNTRY OF MANUFACTURE
Japan
HORSEPOWER
15hp
SHAFT LENGTH
15″ (Short)
STEERING
Tiller
STARTING
Manual
TRIM & TILT
Manual
FUEL DELIVERY
Carburetor
FUEL TANK
External
CYLINDER(S)
2
DISPLACEMENT
21.4 / 351
BORE AND STROKE
2.40 x 2.36in
FULL THROTTLE RPM RANGE
5400-5600
IGNITION SYSTEM
CDI w/electronic spark advance
INDUCTION SCAVENGING
SOHC
VALVES PER CYLINDER
2
FUEL TYPE
87 octane/up to 10% ethanol
FUEL TANK / FUEL LINE
6.6 / 25
OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)
OIL CAPACITY
1 Quart (1000 ml)
LUBRICATION
Trochoid Pump
ALTERNATOR
Optional 12 amp / 138 watt
COOLING SYSTEM
Water-Cooled, Thermostatically Controlled
SALTWATER RATED
YES
GEAR RATIO
2.15:1
GEAR SHIFT
Forward-Neutral-Reverse (shift in tiller handle)
PROPELLER
9.2″ Diameter X 9.8″ Pitch 3-Blade Aluminum
INTERNAL BATTERY
No
2018 Mercury 15 Hp 15MH Outboard Motor
WHAT’S IN THE BOX?
Fuel Tank (6.6 gallon)
Quick Connect Fuel Line
Mercury 3-Year Warranty
Aluminum Propeller
Mercury 4-Stroke Oil
Owner’s Manual & Tool Kit
