2018 Yamaha F15 Portable Tiller F15SMHA Outboard Motor

2018 Yamaha F15 Portable Tiller F15SMHA Outboard Motor

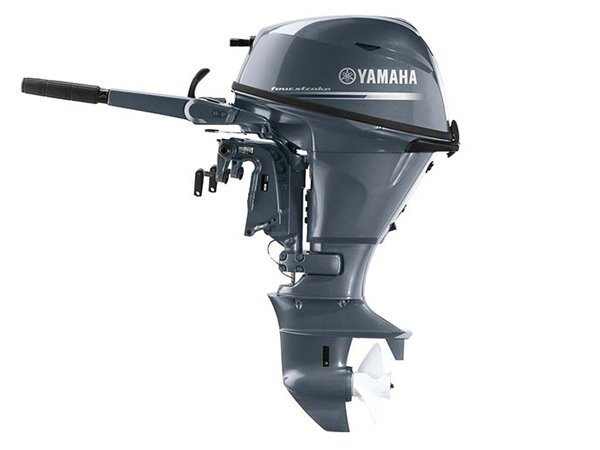

Our 362-cc 15-hp portable features a SOHC in-line, two-cylinder design. Its single carburetor and CDI Microcomputer Ignition System make it one of the most fuel-efficient in its class. At just 111 pounds, it’s suitable for lightweight craft such as aluminum fishing boats, tenders and inflatables.
2018 Yamaha F15 Portable Tiller F15SMHA Outboard Motor
Convenience & Control
CORROSION PROTECTION: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Portable four-stroke outboards.
MAX MANEUVERABILITY: A 45-degree steering angle in each direction means great maneuvering potential.
EASY ENGINE FLUSHING: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
PORTABILITY AND STORAGE: Incredible light weights, built-in resting pads and carry handles, an easy oil retention system and an optional folding tiller handle, allow for easy carrying and on-side storage without oil leakage or cowling scuffs.
Power & Performance
EFFICIENT POWER: The F25, F20 and F15 all feature a two-valve-per-cylinder, single-overhead-camshaft design that provides better breathing and more power.
OPTIMUM PERFORMANCE: An optimally balanced crankshaft and labyrinth exhaust deliver smooth power, while Microcomputer Ignition adjusts timing to maintain maximum engine performance, economy and power under all conditions
STREAMLINED INTAKE: An intake silencer and manifold on the F20 and F15 result in more direct airflow, for minimum noise and maximum power.
RESPONSIVE ACCELERATION: An acceleration pump on the F20 and F15 gives the engine the fuel it needs–when it needs it–like during rapid throttle advance. This ensures responsive acceleration.
Reliability & Durability
OPTIMAL OPERATION: CDI Microcomputer Ignition monitors throttle position, engine speed and atmospheric conditions in order to precisely adjust ignition timing under all conditions for optimum ignition performance, ensuring smooth and reliable operation.
WET SUMP: A pressurized oil delivery system incorporates a compact and durable oil pump to keep all of the moving parts of their SOHC systems lubricated and running smoothly for maximum reliability.
ENGINE WARNING SYSTEM: Protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, start-in-gear protection and shift-in prevention at open throttle.

2018 Yamaha F15 Portable Tiller F15SMHA Outboard Motor
General Information
Manufacturer
Yamaha
Model Year
2018
Model
F15 Portable Tiller
Model Code
F15SMHA
Color
Grey
Electrical
Alternator Output
10 amp
Engine
Engine Type
2 cylinder
Ignition
CDI
Starting
Manual
Exhaust
Through propeller
Measurements
Power
15 Horsepower
Displacement
362 Cubic Centimeter
Bore x Stroke
63 x 58.1 mm (2.48 x 2.29 in)
Shaft Length
15″
Dry Weight
111 lbs
Operational
Steering
Tiller handle
Fuel Type
Unleaded
Use
Fresh and Salt Water
Full Throttle RPM Range
5,000 – 6,000 rpm
Fuel Induction
EFI
Lubrication
Wet sump
Recommended oil – Yamalube® 4M
Oil capacity with filter – 1.8 l
Oil capacity without filter – 1.6 l
Cooling
Thermostatic control
Gear Ratio
2.08:1
Gear Shift
Forward, neutral, reverse
Trim System
-4° through +16°
Degree of tilt – 67°
Propeller
Aluminum
Other
Warranty
3 Year Pleasure, 3 Year Government, 1 Year Commercial
2018 Yamaha F15 Portable Tiller F15SMHA Outboard Motor
WHAT’S IN THE BOX ?
1 X Outboard Motor
1 X Outboard Tiller Handle
1 X Fuel Tank
1 X Quick Connect Fuel Line tilt switch
1 x Teleflex SL3 Throttle control Top or side Mount ? + Free Installation Universal Cables
1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type
1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.
1 X Trim limiter
3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil
1 X Stainless Outboard Anti-Theft
1 X Book Owner’s Manual Guide from manufacturer
1 X Ebook Installation Guide & And how to take care of the engine properly.
3 X Cable Protection System Length 800mm
